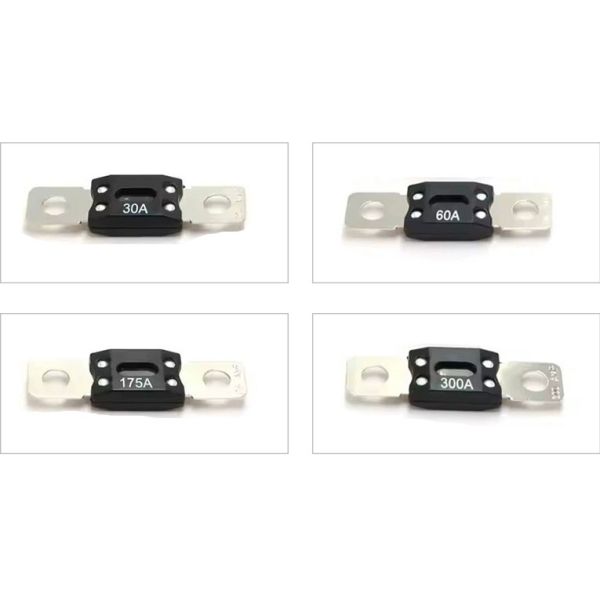

High Current Bolt Down M8 ANM AMG Mega Fuse 100A 200A 300A 400A 500A for Car
This Fuse is designed for high current circuit protection up to 500A.
Specifications
1. Rated Current: 40A to 500A;
2. Interrupting Rating: 2000A@32V-80VDC;
3. Voltage Rating: 32V-80VDC;
4. Operating Temperature Range: -40C ~ 125C;
5. Terminals: Zinc alloy;
6. Housing Material: Plastic;
7. Mounting torque: 12- 18Nm W/M8.
Features
*ANM/AMG Mega Fuse - High Current Fuse
*Premium Material : Plastic insulator to prevent sparking when the fuse trips.No deformation and high contact security thanks to reinforced material on the holes.
*Widely Application : Mega high-current fuses are suitable for cars, trucks, construction vehicles & agricultural machinery.
*Fuse Package: 5PCS fuses are packaged in a plastic bag
Functional Characteristics
| TESTING CURRENT | BLOW TIME LIMIT |
| 100% | 4 Hr. minimum |
| 135% | 1 20seconds--- 1800seconds |
| 200% | 1seconds --- 15 seconds |
| 350% | 0.3sec-5sec |
| 600% | 0.1seC- 1sec |
Fuse List
| ITEM | RATED VOLTAGE | RATING | ASSEMBLY P/N |
| 1 | 32V-80V | 40A | ANM-D-40A |
| 2 | 32V-80V | 60A | ANM-D-60A |
| 3 | 32V-80V | 80A | ANM-D-80A |
| 4 | 32V-80V | 100A | ANM-D-100A |
| 5 | 32V-80V | 125A | ANM-D-125A |
| 6 | 32V-80V | 150A | ANM-D-150A |
| 7 | 32V-80V | 175A | ANM-D-175A |
| 8 | 32V-80V | 200A | ANM-D-200A |
| 9 | 32V-80V | 250A | ANM-D-250A |
| 10 | 32V-80V | 300A | ANM-D-300A |
| 11 | 32V-80V | 350A | ANM-D-350A |
| 12 | 32V-80V | 400A | ANM-D-400A |
| 13 | 32V-80V | 450A | ANM-D-450A |
| 14 | 32V-80V | 500A | ANM-D-500A |
Fuse Holders for Options
